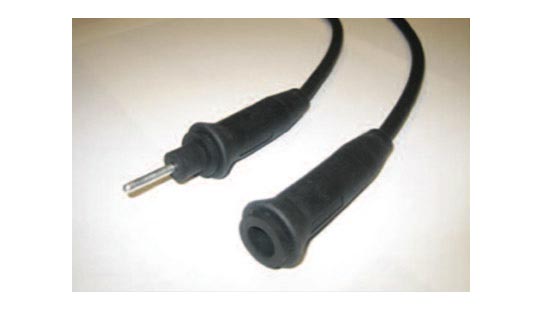

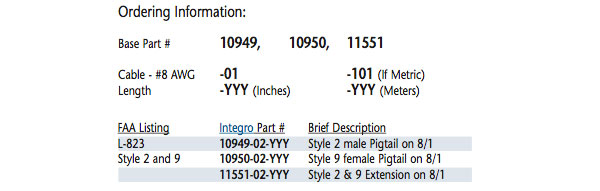

Integro Primary Leads are used for custom installations that require connection to primary power circuits using a factory molded L-823 Style 2 male,orStyle9femaleconnector. Bothconnectorsaremoldedto#8AWG Airport Lighting Cable.

Integro Integro PrimaryLeadsareapprovedtotheFAAL-823specificationandare certified by ITS Testing Labs to FAA Advisory Circular 150/5345-26.

Integro Primary Leads are molded in thermoplastic rubber for superior durabilityanddielectricstrength. Theycanbemanufacturedasbluntcut pigtails,orasextensions. BothStyle2andStyle9connectorsarerated25 Amps and 5,000 Volts.

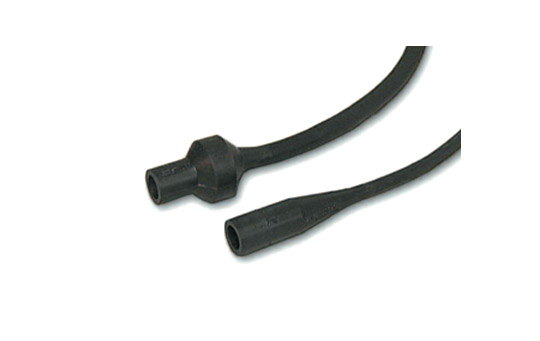

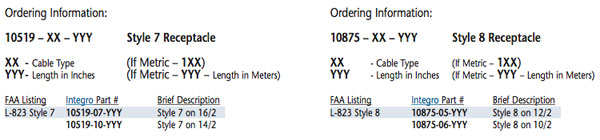

Integro Secondary Receptacles are used for custom installations that require a connection to secondary power circuits using either a factory molded L-823 Style 7 (Straight Design) or a Style 8 (Ball Design) female connector.

Integro Secondary Receptacles are approved to the FAA L-823 specification and are certified by ITS Testing Labs to FAA Advisory Circular 150/5345-26.

Integro Secondary Receptacles are molded in thermoplastic rubber for superior durability and dielectric strength. Both the Style 7 and Style 8 connectors are designed to mate with Style 1 or Style 6 factory molded plugs,aswellasanin-fieldStyle4orStyle5splicedplugs. Theyarerated 20 Amps and 600 Volts.
