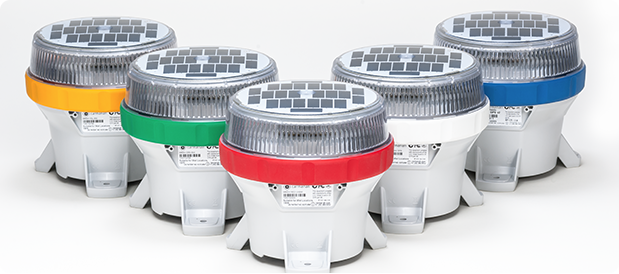

A650 Solar Airfield Light

Optical
High powered LEDs. Colour-specific temperature corrected LED drivers provide consistent intensity under all operating conditions.
ICAOand SAE25050 (FAA) compliant chromaticity.
NVG-compatible infrared (IR) LEDs (wireless model only).
intensity Up to 10 cd, steady on (green)
Battery / Energy Storage
Replaceable and recyclable battery designed for 5+ year life span and extreme temperature range.
Battery status feedback of good, charge, or bad (replace).
Energy Management System (EMS) Intelligent microprocessor; on-board diagnostics and data logger
Automatic Light Control (ALC) When enabled, brightness is automatically reduced in response to unusually low amounts of sunlight to ensure continuous operation
Construction
Waterproof, vented battery compartment
Premium grade UV resistant, polycarbonate/ polysiloxane co-polymer body and lens material.
Double O-ring sealing with waterproof vent
Temperature
-45° to 124° F (-43° to 51° C) ambient temperature
Will function up to 190° F (88° C) internal and surface temperatures
Color Indicator Yes, FAA Eng. Brief 67 compliant
Weight
3.5 lb (1.6 kg)
Wind Loading 400 mph (179 m/s)
Radio Receiver 902-928 MHz FHSS (wireless model)

When selecting a model configuration, consider the differences of the wireless vs non-wireless.

  WIRELESS NON-WIRELESS




Configuration
  • Onboard UI on device
  • Remote control - up to 4 km away (option)
  • Onboard UI on device
  • Infrared Remote - within 5 ft (option)
Control
  • On-demand w/ remote control (option)
  • Automatic dusk to dawn operation
  • Automatic dusk to dawn operation
LED Output
  • Colors: white, blue,green, red, yellow
  • Infrared
  • Colors: white, blue, green, red, yellow
