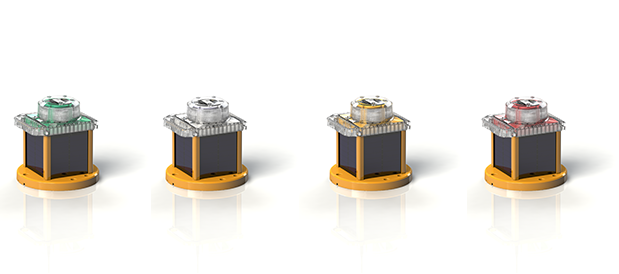

OL800 Solar Obstruction Light - Low Intensity
| Optical |
High powered LEDs meet IES LM-80 lumen maintenance
FAA: Meets Obstruction Light Type L-810 as per FAA Advisory Circular AC 150/5345-43F 09/12.06 (Red).
ICAO: Complies with ICAO Low-Intensity Obstacle Light Type A & B (Annex 14, 5th Edition, July 2009 (Red) and 6th Edition, July 2013 (Red).
CASA: Meets requirements for CASA 10 cd (Part 139, Vol. 2)
ICAO, SAE25050 (FAA) and FAA EB 67 compliant chromaticity: Red, Green, White and Yellow
|
| Energy Collection |
High-efficiency solar cells
Maximum power point tracking with temperature compensation (MPPT-TC)
|
| Energy Storage |
Pure-lead VRLA AGM battery, rated for -85° to 176° F (-65° to 80° C)
On-board battery status and charging port
Replaceable and recyclable battery designed for 5 year life span
|
| Battery |
Compact: (60X) X-cells, 60 Wh
Standard: (96E) E-cells, 96 Wh
Large: (200BC) BC-cells, 200 Wh
|
| Flash Patterns | Steady on and flash patterns |
| Energy Management System (EMS) | Intelligent microprocessor; on-board diagnostics and datalogger |
| Automatic Light Control (ALC) | Automatically adjusts to low levels of sunlight to ensure continuous operation |
| Programming | Integrated 4-character LED display; Optional infrared programmer available |
| GPS Synchronization | Optional GPS enables two or more lanterns to flash in unison |
| Construction |
Waterproof, vented battery compartment
Premium grade, UV resistant, polycarbonate head and lens
Polycarbonate/polysiloxane co-polymer base
Environmentally friendly, durable powder coated aluminum chassis (applied by trivalent chromate process)
Thermoplastic gaskets
Top colour indicator matches LED output
Integrated handle
|
| Temperature |
-22° to 122° F (-30° to 50° C) optimal
-40° to 176° F (-40° to 80° C) maximum
|
| Mounting | 3 or 4 bolt 7.87" (200 mm) mounting pattern |
| Weight |
Compact: 9.9 lb (4.5 kg)
Standard: 14 lb (6.4 kg)
Large: 22.4 lb (10.2 kg)
|
| Wind Loading | 140 knots (72 m/s) |
| Ice Loading | 0.03 psi (22 kg/m2) |
| Shock and Vibration |
MIL-STD-202G
|
| Ingress |
EN 60529 IP 68 immersion MIL-STD-202G immersion & damp heat cycling MIL-STD-810G rain & salt fog |
| Electrostatic Discharge (ESD) | FAA-STD-0193, EN61000-4-2 |
SOLAR ENGINE SIZES
OL800 Compact
At 9.9 lbs (4.5 kg), the OL800 Compact is the smallest of the Carmanah 800 Series. Suitable for at least 7 days autonomy in mid to high sun locations. Comes with 60 Wh battery pack.
OL800 Standard
The OL800 Standard provides reliable solar obstruction lighting over a wider geographical range. Comes with 96 Wh battery pack.
OL800 Large
The OL800 Large is available for use in tough solar locations. Comes with 200 Wh battery pack and includes all of the features of the compact and standard models.
