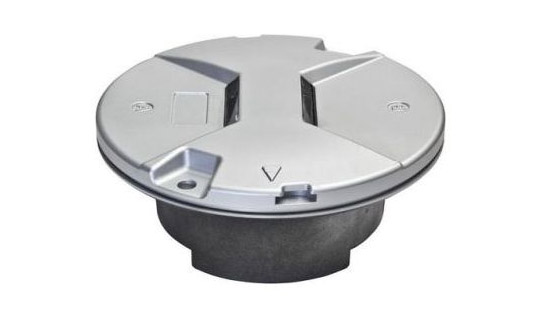

LITC
LED Inset Taxiway Centreline, Stop Bar and Intermediate Holding Position Light
COMPLIANT with the Current Edition of the following Specs:
ICAO: Annex 14 - Volume I
IEC: TS 61827
FAA: L-852A-B-C-D-J-K AC150/5345-46 and "Engineering Brief No.67"
NATO: STANAG 3316
IEC: TS 61827
FAA: L-852A-B-C-D-J-K AC150/5345-46 and "Engineering Brief No.67"
NATO: STANAG 3316
DIMENSIONS:
Diameter: 8" or 12"
Protrusion: 6.3 mm
Fixture Depth: 101 mm
Base Depth: 125 mm (8'' fixture) or 150 mm (12'' fixture)
Protrusion: 6.3 mm
Fixture Depth: 101 mm
Base Depth: 125 mm (8'' fixture) or 150 mm (12'' fixture)
CONSUMPTIONS:
Taxiway Centreline Green/Yellow CAT III: 16 VA
Taxiway Centreline Green/Green CAT III: 16 VA
IHP Yellow CAT III: 8 VA
Taxiway Centreline Green/Green CAT III: 16 VA
IHP Yellow CAT III: 8 VA
MAIN OPTIONS:
Arctic Kit: electric device, thermostatically controlled, that heats the area near the prisms (inset fixtures) or the external glass lens (elevated fixtures) favoring the melting of the ice and/or snow; thus avoids the light beam obstruction with a behaviour similar to a traditional halogen lamp. 8"-12" 20-40 VA per plug respectively.
Monitoring: electronic device that returns information of open circuit at the secondary of the isolation transformer in case of failure of a luminous LED source or control board.
